EFD- Valve Fittings
ID
DEEF0520

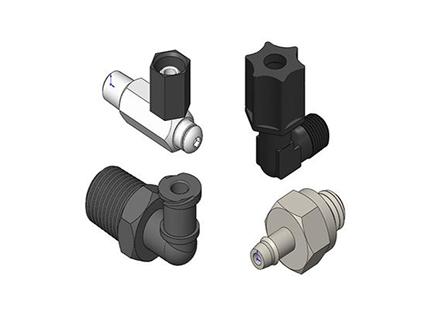

EFD offers a number of different valve fittings with a range of different sizes, colours and materials. Materials available includes: polypropylene, nylon, stainless steel, silver and brass. Part Number Colour Description 7016864 (2162) White 1/4 hose to
Description
EFD offers a number of different valve fittings with a range of different sizes, colours and materials. Materials available includes: polypropylene, nylon, stainless steel, silver and brass.
| Part Number | Colour | Description |
|---|---|---|
| 7016864 (2162) | White | 1/4 hose to barrel adapter, polypropylene |
| 7020133 (62503PT) | Black | 1/4 pass-thru bulkhead, nylon |
| 7020153 (62516PT) | Black | 3/8 pass-thru bulkhead, nylon |
| 7012255 | Silver | M5 X 4 mm push-in elbow fitting |
| 7016865 (2162A) | White | Barrel adapter 3/32 barb, polypropylene |
| 7021308 (7512A) | Black | Fitting: 1/4 X 1/4 bulkhead, nylon |
| 7020136 (62504) | Black | Fitting: 1/8 NPT X 3/8 compression elbow, nylon |
| 7021489 (75409) | Silver | Fitting, fluid: 1/8 barb - 754V |
| 7021491 (75410) | Silver | Fitting, fluid: 4 mm barb - 754V |
| 7021299 (7511A) | Silver | Fitting: 1/4-28 to 1/8 barb, stainless steel |
| 7021309 (7512BP) | Black | Fitting: 1/4-28 to barrel black, polypropylene |
| 7021310 (7513) | Clear | Fitting: 1/4-28 to cartridge, polypropylene |
| 7021300 (7511BP) | Black | Fitting: 1/4-28 X 1/8 barb, black, polypropylene |
| 7021036 (72607-SS) | Silver | Fitting: 1/4 NPT X 3/8 compression elbow, stainless steel |
| 7020896 (72521) | Brass | Fitting: 1/8 NPT X 3/8 compression elbow, brass |
| 7021462 (7538UV) | Black | Fitting: 1/8 NPT X 1/8 barb, nylon |
| 7021460 (7538) | Clear | Fitting: 1/8 NPT X1/8 barb, polypropylene |
| 7021466 (7539UV) | Black | Fitting: 1/8 NPT X 1/8 barb elbow, nylon |
| 7021532 (7611BP) | Black | Fitting: 1/8 NPT X 1/4 compression, black, polypropylene |
| 7007038 (7610BP) | Black | Fitting: 1/8 NPT X 3/8 compression, black, polypropylene |
| 7021376 (7522) | White | Fitting: 5/16-28 to 1/8 barb, polypropylene |
| 7020895 (72520N) | White | Fitting: Cartridge to 1/8 NPT elbow, nylon |
| 7020894 (72520-SS) | Silver | Fitting: Cartridge to 1/8 NPT elbow, stainless steel |
| 7020673 (70211) | Silver | Fitting: M5 X 1/8" ID barb stainless steel, elbow |
| 7020905 (72525) | Brass | Fitting: RTV cartridge to 1/8 NPT brass |
| 7017014 (2269BP) | Black | Fitting: 1/4 NPT X 1/4 compression, black, polypropylene |
| 7017020 (2275BP) | Black | Fitting: 1/4 NPT X 3/8 compression, black, polypropylene |
| 7021038 (72608P) | White | Fitting: 1/4 NPT X 3/8 compression elbow, polypropylene |
| 7021499 (7543BP) | Black | Fitting: 1/8 NPT X 1/4 compression elbow, black, polypropylene |
| 7021486 (75408) | White | Fitting: 4.0 mm OD tubing with ferrule |
| 7020903 (72523BP) | Black | Fitting: Barrel to 1/8 NPT elbow, black, polypropylene |
| 7020150 (62516) | Black | Fitting: 3/8 X 3/8 bulkhead with O-Ring |
| 7020671 (70210) | Silver | Fitting: M5 X 1/8" ID barb, stainless steel |
| 7020669 (70209) | Silver | Fitting: M5 X 3/32" ID barb, stainless steel |
| 7021919 (79401) | N/A | Fitting: 10-32 UNF X 3/32 barb |
| 7021867 (79005) | N/A | Inlet fitting assembly-794 |
| 7021541 (7615) | N/A | Polypropylene "Y" fitting for 1/4" ID tubing |
| 7007017 (7613) | N/A | Polypropylene "Y" fitting for 1/8" ID tubing |
| 7021539 (7614) | N/A | Polypropylene "Y" fitting for 3/32" ID tubing |
| 7020156 (62518) | N/A | Reducer 3/8 to 1/4 tubing, nylon |
| 7020159 (62518PT) | N/A | Pass-through reducer 3/8 to 1/4 tubing, nylon |
*Actual product colours may vary from on-screen and printed representations.
